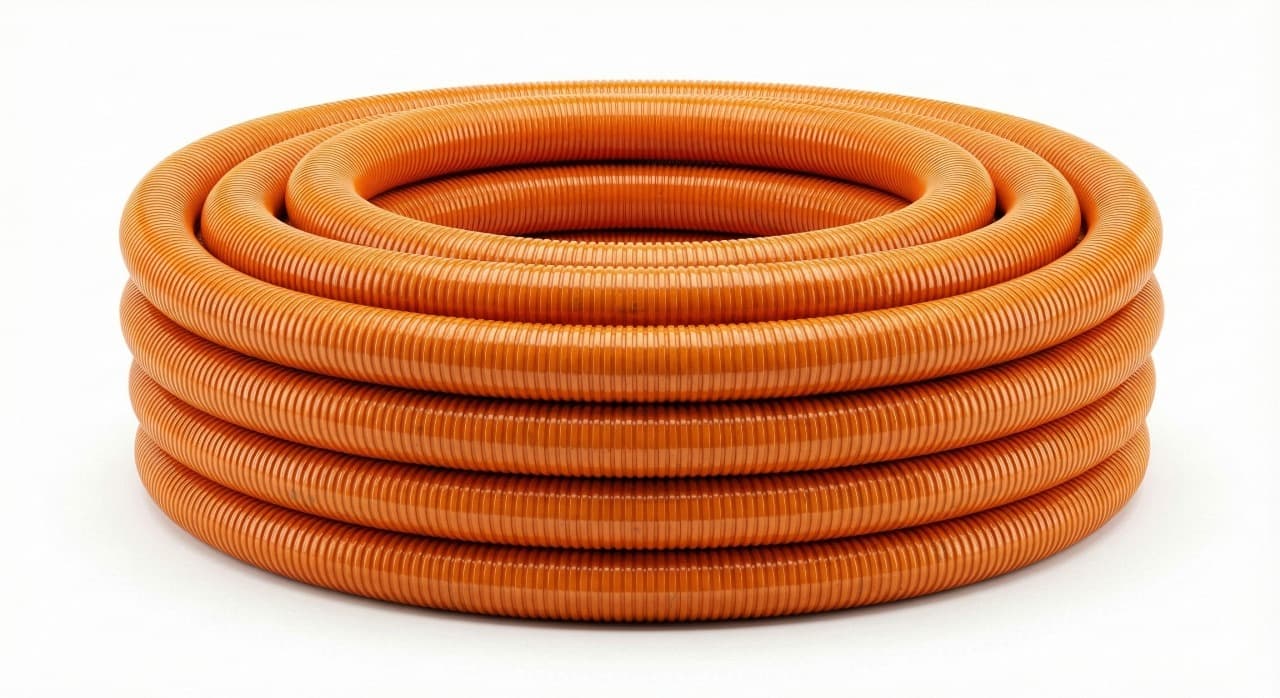

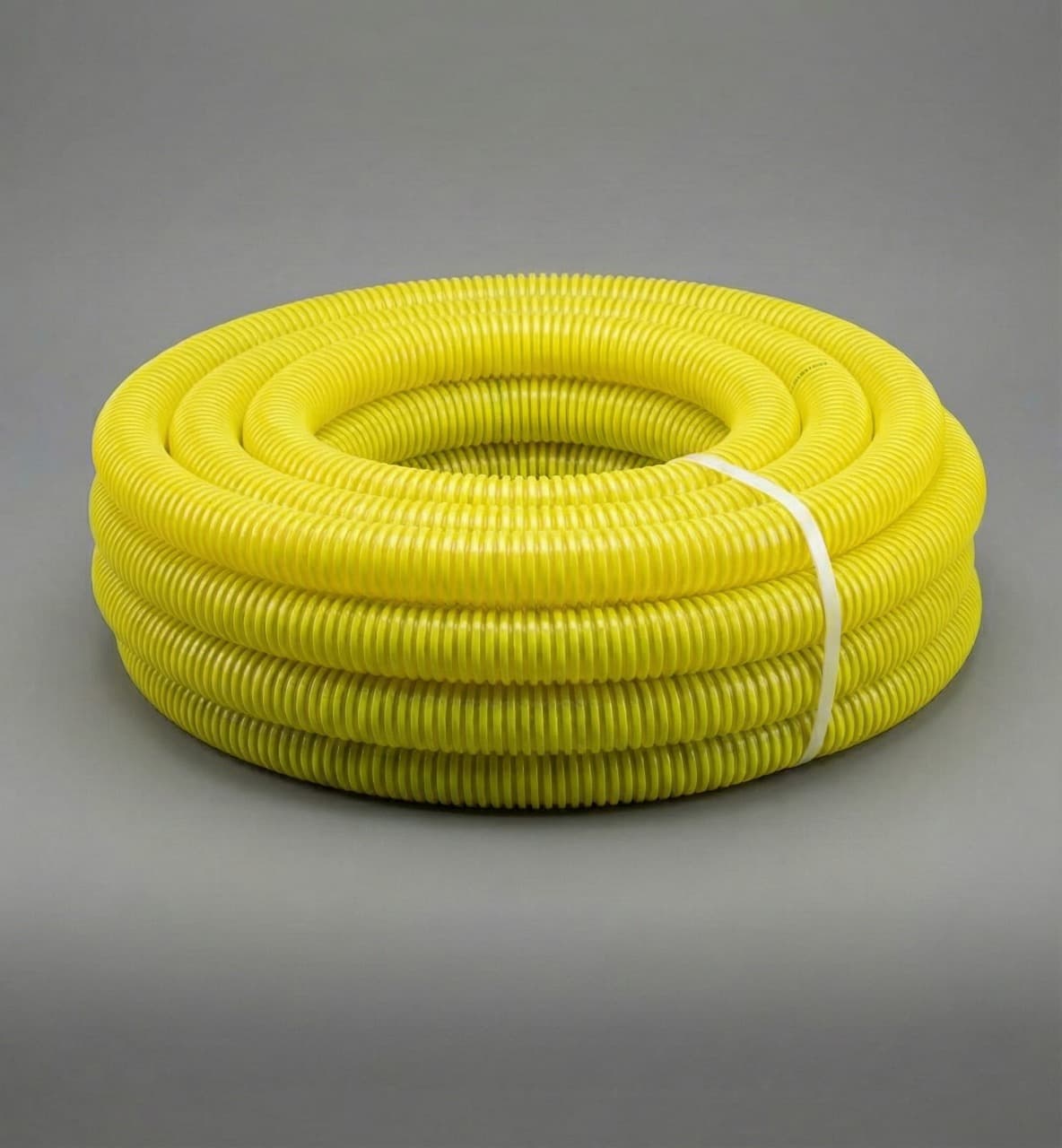

PVC Suction Pipe
Heavy-Duty Fluid & Slurry Transport Engineering
Engineered for Durability & Flex Life
J-TEX POLYMERS PVC Suction Hose Pipes are engineered with a rigid impact-resistant PVC spiral helix embedded inside a smooth flexible PVC wall. This composite construction delivers exceptional collapse resistance under vacuum pressures while maintaining flexibility for quick routing across agricultural fields, construction sites, and industrial plants.
Key Product Features
PVC Suction Pipe Specifications
| Size (Inch) | Nominal ID (mm) | Actual ID (mm) | Wall Thickness (+0.5mm) | Working Press. (kg/cm²) | Burst Press. (kg/cm²) | Std. Coil Length (mtr) |
|---|---|---|---|---|---|---|
| 0.75" | 20 | 20 | 3.0 mm | 8 kg/cm² | 20 kg/cm² | 30 mtr |
| 1" | 25 | 25 | 3.5 mm | 8 kg/cm² | 20 kg/cm² | 30 mtr |
| 1.25" | 30 | 32 | 3.5 mm | 7 kg/cm² | 17 kg/cm² | 30 mtr |
| 1.5" | 40 | 38 | 3.5 mm | 6.5 kg/cm² | 16 kg/cm² | 30 mtr |
| 2" | 50 | 50 | 4.0 mm | 5.5 kg/cm² | 15 kg/cm² | 30 mtr |
| 2.5" | 65 | 63 | 4.5 mm | 5.5 kg/cm² | 15 kg/cm² | 30 mtr |
| 3" | 75 | 75 | 5.0 mm | 4.5 kg/cm² | 15 kg/cm² | 30 mtr |
| 4" | 100 | 100 | 6.0 mm | 4.5 kg/cm² | 11 kg/cm² | 30 mtr |
| 5" | 125 | 125 | 7.0 mm | 3.5 kg/cm² | 10 kg/cm² | 15 / 18 mtr |
| 6" | 150 | 150 | 8.5 mm | 3.0 kg/cm² | 9 kg/cm² | 15 / 18 mtr |
Recommended Applications
Agricultural Pumps & Borewells
Suction line connection for diesel pump sets, river water intake, and canal pumping.
Civil Engineering & Construction
Removal of muddy water, sand slurry, and basement flood evacuation.
Sewer & Waste Disposal
Pumping effluent, non-corrosive industrial liquids, and chemical wash solutions.
Water Tankers & Saline Pumping
Durable performance in coastal aquaculture and salt pan fluid circulation.
Need a Product Quote for PVC Suction Pipe?
Contact J-TEX POLYMERS sales engineers for coil pricing, minimum order quantities, and custom compounds.
